Self-traversing take up’s

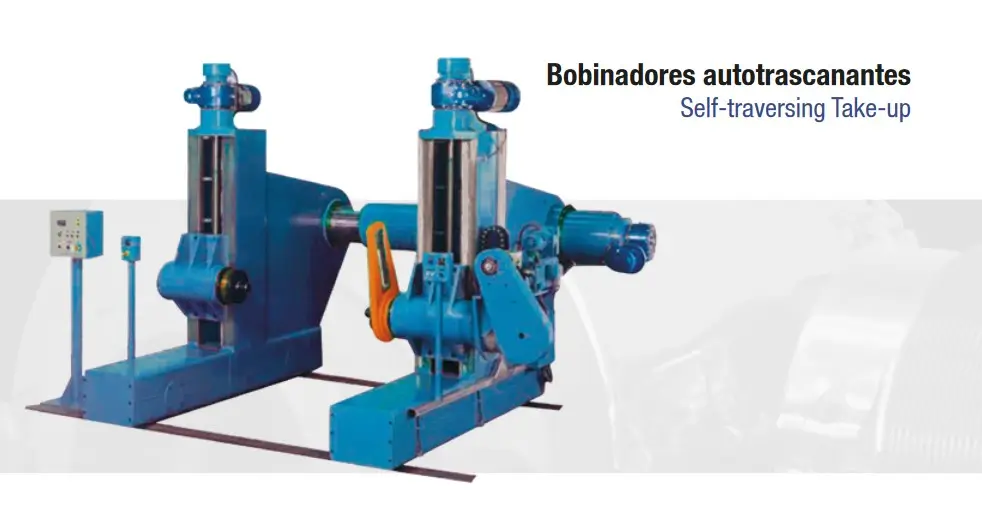

Self-traversing Take-up suitable for working on lines where the cable guiding operation is especially critical.

Mechanical characteristics

Telescopic take-up with opening and lateral movements on tracks.
Robust design made of steel.
Steel pintles mounted on bearings.
Drive motor mounted on the pintles.
AC motors.
Lateral movements of the take-up and wire guide with AC motors and variable pitch.
Bobbin lifting and pintles closing with alternating AC motors.
Fixed wire guide rollers.

Electric equipment

Digital variable frequency drives for controlling the main AC motor and for the wire guide motors.
Control panel hanging from the take-up structure.
Movements controlled by PLC
