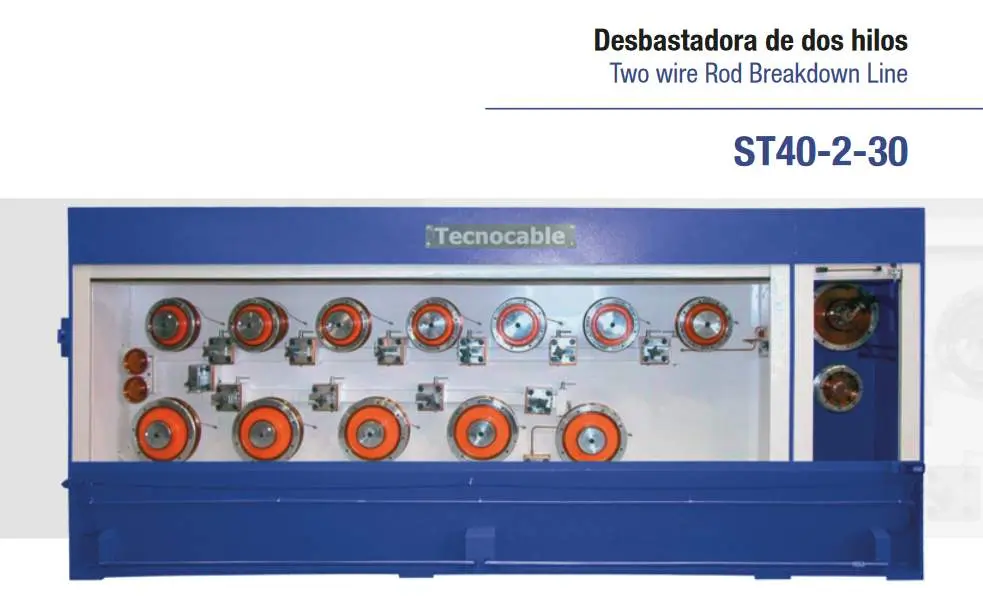

Rod Breakdown Line ST40-2-30

Rod breakdown machine formed by a stabilized and electrowelded steel structure. Steel shafts and ceramic or tungsten carbide capstan. The last drawing capstan is water cooled. Compact machine with heat exchanger and integrated pump.

Mechanical characteristics

  • AC motors.
  • Last independently powered drawing capstan for quick die
    change.
  • Machine control by PLC.
  • Transmission by toothed belts of high performance and low
    maintenance.
  • Tungsten carbide or ceramic drawing capstans.
  • Die-holders with the pressure chamber.
  • Machine with the automatic greasing center.
  • Latest clutch disconnect capstans.
  • Mechanical anti-return.

Approximate dimensions of the machines
